KNIPEX 35 21 115 Electronics Pliers 115mm

SKU
35 21 115
In stock
Overview
  • Durable, load-optimised design with backlash-free box joint
  •  Head carefully rounded: no sharp edges that could damage the material
  •  High, slim sleeves for fine and comfortable gripping between thumb and index finger
  •  Uniform bending behavior for a more direct sense of work
  •  Smoothly ground gripping surfaces for damage-free gripping
  •  Low-friction double spring for gentle and even opening
  •  The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
  •  Flat, wide jaws, smoothly ground gripping surfaces



Technical attributes

Article No 35 21 115
EAN 4003773016724
Head mirror polished
Handles with non-slip plastic coating
Weight 55 g
Dimensions 115 x 68 x 11 mm
Standard DIN ISO 9655
REACH compliant does not contain SVHC
RoHS compliant not applicable
Jaw length (B) 22.5 mm
Jaw thickness (joint) (D) 6.5 mm
Tips width (E) 2.0 mm
Tips thickness (F) 1.5 mm
Head width (A) 11.0 mm



Special Price ₹ 3,133.00 Regular Price ₹ 5,697.00
-
+
  • Durable, load-optimised design with backlash-free box joint
  •  Head carefully rounded: no sharp edges that could damage the material
  •  High, slim sleeves for fine and comfortable gripping between thumb and index finger
  •  Uniform bending behavior for a more direct sense of work
  •  Smoothly ground gripping surfaces for damage-free gripping
  •  Low-friction double spring for gentle and even opening
  •  The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
  •  Flat, wide jaws, smoothly ground gripping surfaces



Technical attributes

Article No 35 21 115
EAN 4003773016724
Head mirror polished
Handles with non-slip plastic coating
Weight 55 g
Dimensions 115 x 68 x 11 mm
Standard DIN ISO 9655
REACH compliant does not contain SVHC
RoHS compliant not applicable
Jaw length (B) 22.5 mm
Jaw thickness (joint) (D) 6.5 mm
Tips width (E) 2.0 mm
Tips thickness (F) 1.5 mm
Head width (A) 11.0 mm



Small & narrow: gripping pliers with half round tips for fine installation work

Short, smooth and good: 115 mm long for plenty of freedom of movement even where space is restricted

There is usually not much room to move when working on electronic equipment, printed circuit boards and precision constructions such as measuring equipment or delicate apparatus. A compact tool which can also be used to work well even in poorly accessible areas is therefore helpful.

With a length of just 115 mm and their slim, flat head and half round, tapered tips, the 35 21 115 electronics pliers from Knipex are the ideal tool for the delicate gripping, holding and bending of sensitive components. The gripping surfaces are smooth ground to protect sensitive surfaces. The tips are half round and tapered at the front.



Smooth operating and accurate, with box joint design and double spring

The smaller and more sensitive the component, the greater the challenges placed on pliers. The accurate, well-measured transmission of manual force to the component is decisive. To permit this, the mechanics of the Knipex 35 21 115 are very finely adjusted. The box joint is solid and smooth operating, because the inner handle is guided on both sides by the outer handle. This ensures precise running without any tilting effect. The low friction double spring supports the gentle opening of the pliers

High Knipex quality standards and safety rust protection

The handles of the Knipex 35 21 115 electronics pliers are forged from special tool steel, oil-hardened, carefully deburred, mirror-polished and completed with opening spring and rivet to produce gripping pliers. The rust protection is safe for circuits because there is no chrome-plating, which means that no pieces of chrome can peel off and fall onto printed circuit boards. The pliers are protected against corrosion thanks to a mirror polish and a fine oil film as long as the oil film is replaced occasionally.

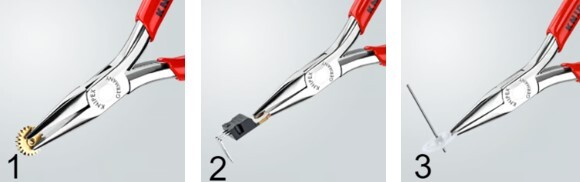

Gentle grip and firm hold

Even very sensitive areas such as a toothed wheel centre bore can be gripped and held gently.

Gently feed printed circuit board components

The Knipex 35 21 115 is a valuable support when feeding sensitive components

Ideal for sensitive components

Sensitive mechanical components can be gripped firmly without damaging materials.



Datasheet (Link)

https://assets.knipex.net/3521115_en.pdf



More Information
SKU 35 21 115
Product Model No 35 21 115
brand Knipex
GTIN / EAN /UPC 4003773016724
