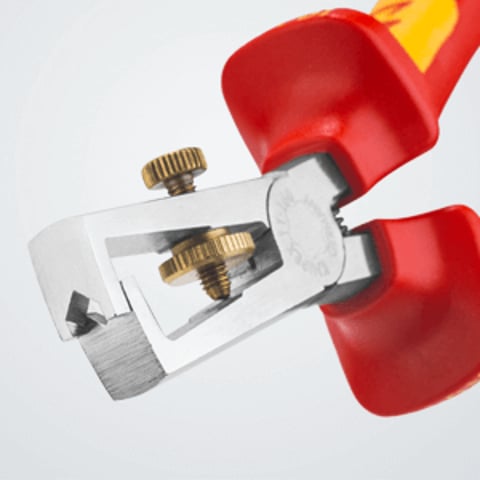

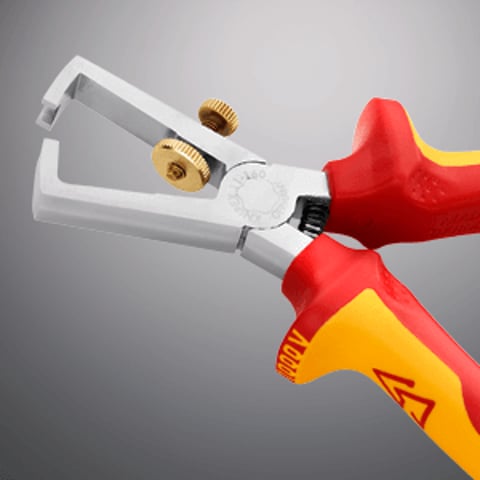

KNIPEX 11 06 160 Insulation Stripper with opening spring, universal insulated with multi-component grips, VDE-tested chrome plated 160mm

SKU
11 06 160
In stock
Overview
  • For single, multiple and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm²
  •  Easy adjustment to the required diameter of stranded wire with knurled screw and lock nut



Technical attributes

Article No 11 06 160
EAN 4003773021933
Pliers chrome-plated
Head chrome-plated
Handles insulated with multi-component grips, VDE-tested
Weight 180 g
Dimensions
160 x 57 x 19 mm
Standard DIN EN 60900 IEC 60900
REACH compliant does not contain SVHC
RoHS compliant not applicable
Stripping capacities (diametre)
Ø 5.0 mm
AWG
8
VDE tested Yes
Special Price ₹ 3,960.00 Regular Price ₹ 5,911.00
-
+
  • For single, multiple and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm²
  •  Easy adjustment to the required diameter of stranded wire with knurled screw and lock nut



Technical attributes

Article No 11 06 160
EAN 4003773021933
Pliers chrome-plated
Head chrome-plated
Handles insulated with multi-component grips, VDE-tested
Weight 180 g
Dimensions
160 x 57 x 19 mm
Standard DIN EN 60900 IEC 60900
REACH compliant does not contain SVHC
RoHS compliant not applicable
Stripping capacities (diametre)
Ø 5.0 mm
AWG
8
VDE tested Yes

VDE tested standard-wire strippers for standard insulation

For plastic and rubber insulation materials

As standard wire strippers, the insulated and VDE tested Knipex 11 06 160 are mainly used for wiring frequently laid NYM cable (NYM stands for “standardised cable / PVC wire insulation / sheathed cable“). Fitters who want to wire a large number of sockets in one work step while consistently stripping wires with 1.5 mm², for example, have the right tool to hand to remove the insulation from conductors up to Ø 5 mm or a 10 mm² conductor cross-section.

These pliers are also the right tool for stripping flexible conductors in rubber cable as connection or extension lead.

Proven knurled screw for adjusting the conductor cross-section

The pliers are set to the conductor cross-section using the knurled screw so that only the insulation is cut into without damaging the conductor. The knurled screw is secured with the inset lock nut to maintain the precise adjustment even during longer periods of work. This simple technology has been tried and tested by electricians for decades.

With strong construction for long tool life, convenient to use

Knipex 11 06 160 wire strippers are forged from special tool steel and additionally oil-hardened. The opening spring nestles the pliers gently in the user’s hand, thereby substantially reducing strain in hand muscles when holding the pliers tight. The chrome plating protects against corrosion, e.g. if the pliers are kept permanently in a range of tools stored in the company vehicle where temperature changes can lead to moisture (condensation) forming on the tool. Thanks to this machining and finishing step, when used correctly this prepares the pliers for a long tool life. With their multi-component grips, these wire strippers sit comfortably in the hand.

Knipex wire strippers: easy to use, useful and strong

They are an indispensable part of the everyday work of electricians. Classic wire strippers from Knipex perform a valuable service wherever standard, consistent wire stripping work is called for.

The great benefits of the tools and their safe, comfortable use are the results of decades of experience making pliers, continuous development and Knipex’s commitment to high quality standards.

Pliers from Knipex are built for many years of use in a professional environment.

Adjustment to the conductor cross-section

The wire strippers are set to the right conductor cross-section using the knurled screw and lock nut.

Cutting into the insulation

Correctly adjusted, the wire strippers cut into the cable insulation without damaging conductor or strands.

Stripping the insulation

After the insulation has been cut into, it can be removed from the conductor effortlessly.

Tough and durable

The strong pliers are forged from special tool steel, oil-hardened and chrome plated.



Datasheet (Link)

https://assets.knipex.net/1106160_en.pdf
