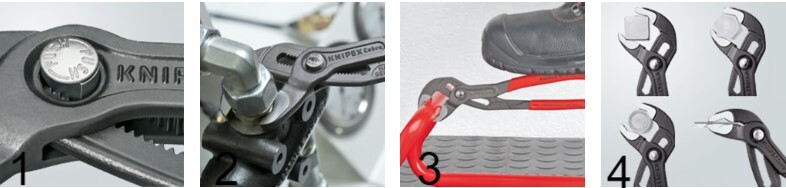

- Push the button for adjustment on the workpiece
- Fine adjustment for optimum adaptation to different sizes of workpieces and a comfortable handle width
- Self-locking on pipes and nuts: no slipping on the workpiece and low handforce required
- Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: high wear resistance and stable gripping
- Box-joint design for high stability due to double guide
- Reliable catching of the hinge bolt: no unintentional shifting
- Pinch guard prevents operators' fingers being pinched
- Chrome vanadium electric steel, forged, multi stage oil-hardened
Technical attributes
Article No. | 87 02 180 |
EAN | 4003773042396 |
Pliers | grey atramentized |
Head | polished |
Handles | with multi-component grips |
Weight | 196 g |
Dimensions | 180 x 55 x 18 mm |
Standard | DIN ISO 8976 |
REACH compliant | does not contain SVHC |
RoHS compliant | not applicable |
Adjustment positions | 18 |
Kapazität für Rohre (Zoll) | Ø 1 1/2 Inch |
Capacities for nuts | 36 mm |
Capacities for pipes (diameter) | Ø 42 mm |
